LMTY SERIES




LMTY Standard Cabinet Series

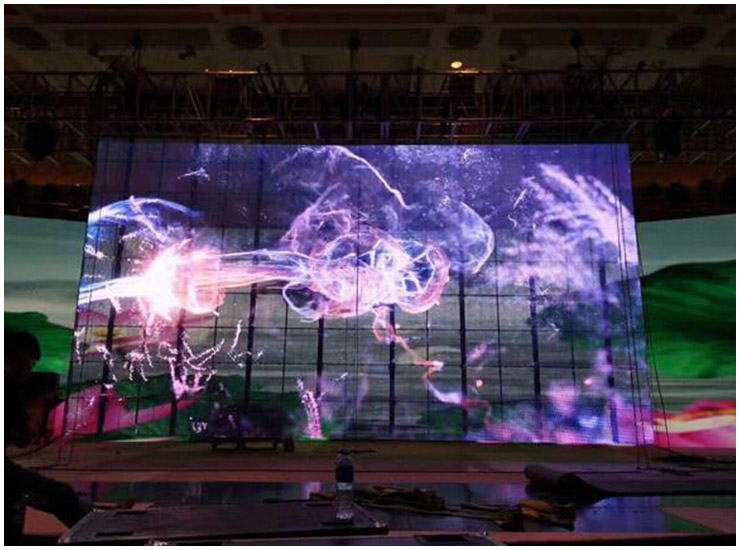

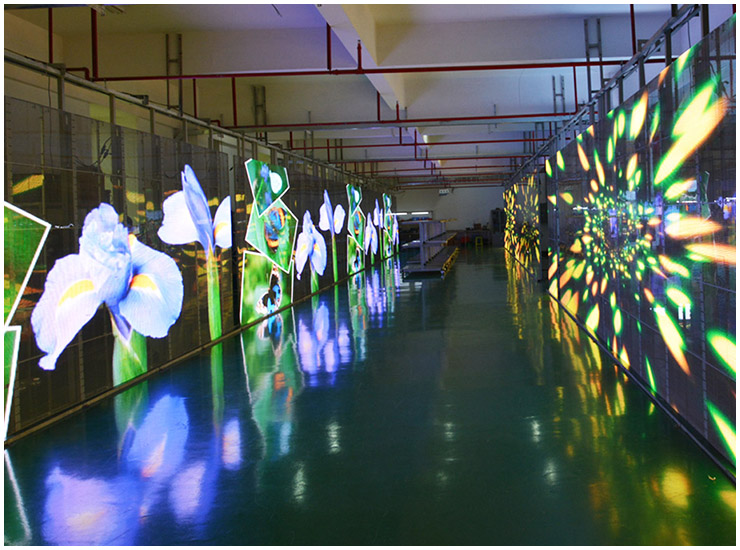

LMTY Standard Cabinet Series is short production period and easy installation way .It iswidely used in shopping mall ,store windows ,sample room and so on.

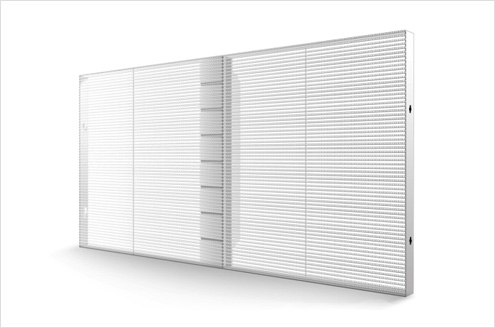

Standard Cabinet Design


Standard cabenit design

make short production period and fast installation

period and fast installation




Easy Maintenance


Individual strip design with hot plug





High Transparency


Although with 3.91mm pixel pitch, LMTY series can also reach 60% transparent rate, and for 10mm or higher pixel pitch can reach more than 80% transparent rate.





Quickly Splicing


The standard cabinet of the LMTY series

makes it easy to quickly splicing the screen





Product ModelLMTY-3.9LMTY-7.8LMTY-10.4LMTY-15.625

Pixel Pitch

3.9-7.8mm

7.8mm

10.416mm

15.625mm

LED Configuration

SMD1921

SMD1921

SMD1921

SMD3535

Pixel Density

32768 dot/m²

16384 dot/m²

9216 dot/m²

4096 dot/m²

Cabinet Size

1000x500mm

1000x500mm

1000x500mm

1000x500mm

Cabinet Resolution

256×64dot

128×64dot

96×48dot

64×32dot

Transparency

60%

65%

80%

85%

Cabinet Weight

9kg/panel

9kg/panel

8kg/panel

8kg/panel

Brightness

1200CD/5000CD

1200CD/5000CD

1200CD/5000CD

6500CD

IP Rating

IP55

Viewing Angle

140°/140°

Refresh Rate

≥1920Hz

Gray Scale

14bit

Max.Power Consumption

600w/ m²
Ave.Power Consumption200w/ m²
Operating  PowerAC 110V~240V,50/60Hz
Operating Temperature0 ~ 40℃ (work),-20℃ ~ 60℃ (store)
Operating Humidity35%~85%(work),10%~90% (store)
Operating Life≥100,000 hours
Control ModeSynchronous display with control PC by DVI
Support InputComposite ,S-Vido ,Component ,VGA,DVI,HDMI,HD_SDI
