Window LED Transparent Screen HecsY Series

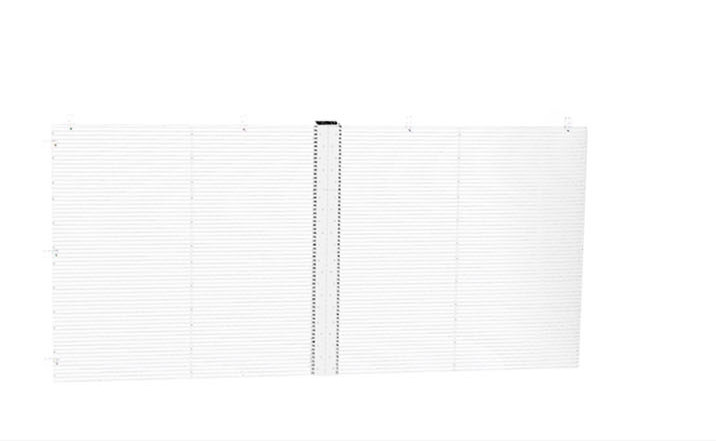

HecsY Window Transparent LED Screen

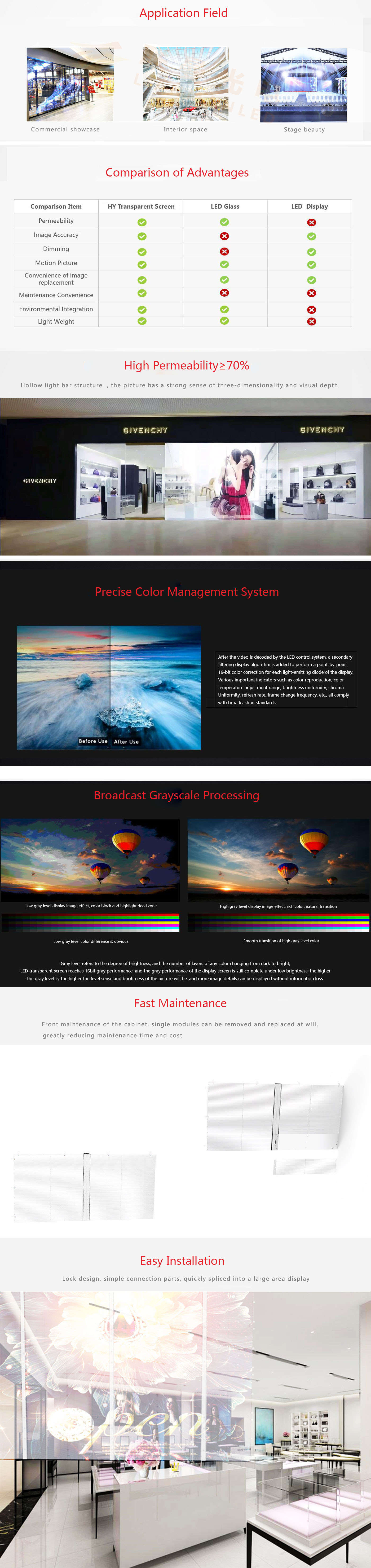

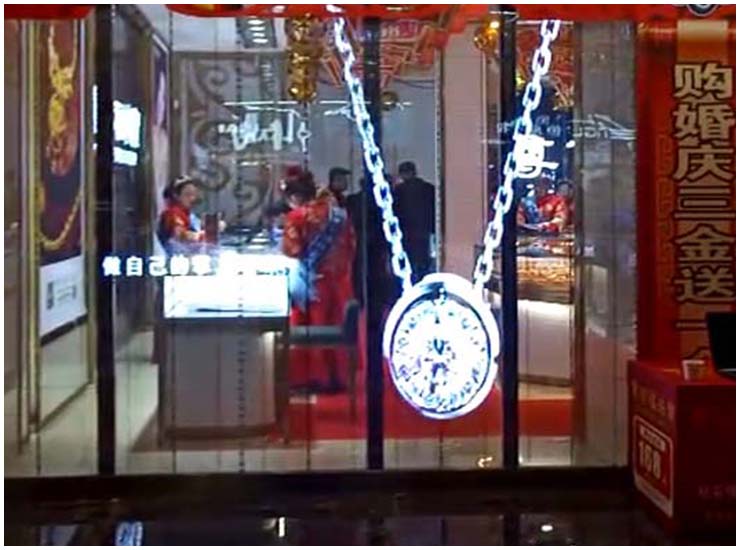

HecsY window series products are ultra-light and highly transparent. The frame and shape are optimized, the weight is lighter, and the shape is more concise. Without affecting the environmental lighting, the brightness of up to 5000CD has excellent display effect even in the daytime, which is widely used in various scenes such as shopping mall windows, high-end brand stores, automobile 4S stores, and high-end commercial display exhibitions.


Product VersionHecsY-2.78HecsY-3.97HecsY-9.26
Pixel Pitch(mm)2.78*5.56mm3.97*7.81mm9.26*9.26mm
LED Type2020/19212020/19212020/1921
Pixel Density(pixels/㎡)648003225611664
Module Size(WxH)(mm)500*125mm500*125mm500*125mm
Tile Size(WxHxD)(mm)1000*500*30mm1000*500*30mm1000*500*30mm
Tile MaterialAluminum profile/PC/Carbon fiberAluminum profile/PC/Carbon fiberAluminum profile/PC/Carbon fiber
Weight2.72kg2.72kg2.72kg
Transparency45%70%72%
Brightness(cd/㎡)L:1200/H:5000L:1200/H:5000L:1200/H:5000
Brightness Level256256256
Refresh Rate1920 Hz/3840 Hz1920 Hz/3840 Hz1920 Hz/3840 Hz
Color Processing16Bit16Bit16Bit
Colors281 trillion281 trillion281 trillion
DrivingConstant current driveConstant current driveConstant current drive
 ICMY9866QNMY9866QNMY9866QN
Scan1/101/71/3
Max. Power Consumption400W/㎡ / 800W/㎡400W/㎡ / 800W/㎡400W/㎡ / 800W/㎡
Ave. Power Consumption120W/㎡ / 250W/㎡120W/㎡ / 250W/㎡120W/㎡ / 250W/㎡
InstallationHoisting or base mounting or fixed installationHoisting or base mounting or fixed installationHoisting or base mounting or fixed installation
ServiceabilityFront/rear maintenanceFront/rear maintenanceFront/rear maintenance
IP RatingIP40/IP54IP40/IP54IP40/IP54
Hor. viewing angle160°160°160°
Vert. viewing angle160°160°160°
Work VoltageDC 48V&5VDC 48V&5VDC 48V&5V
Operational Temp-10~40 ºC-10~40 ºC-10~40 ºC
Operational Humidity10%-90%10%-90%10%-90%
Input VoltageAC 100V~240VAC 100V~240VAC 100V~240V
Product Life100000 hours100000 hours100000 hours
