Dance Floor LED Screen BotsX Series


 BotsX series interactive Dance LED floor screen



The BotsX series dance floor screen is an innovative product developed specifically for ground display. Targeted design in terms of load bearing, protection and heat dissipation can adapt to high-intensity pedaling. It has the characteristics of stable display, high load-bearing, energy saving and environmental protection. The innovative and interesting functional experience adds more elements to the commercial display and creates a popular gathering place.


Installation method: foot installation/rail installation

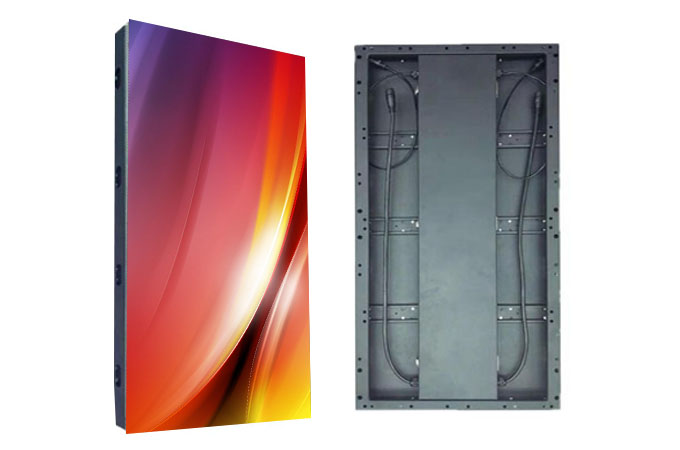

Standard Cabin size: 1000×500mm/1000×500mm

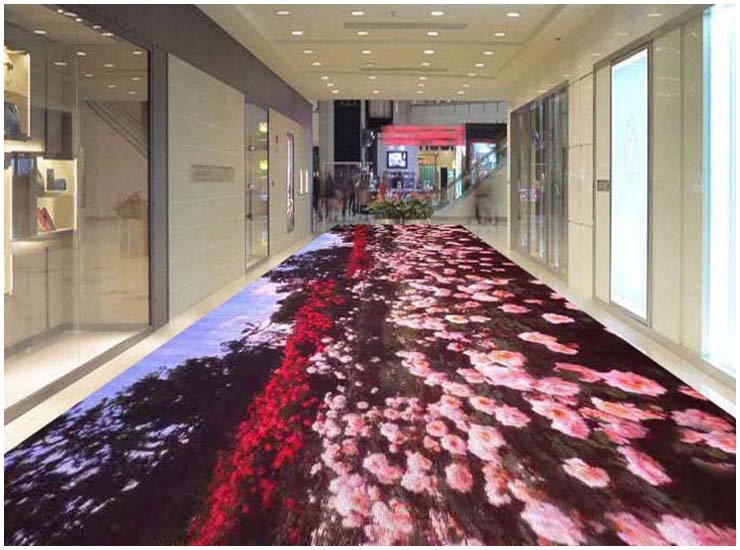

Application areas: stage, wedding, shopping mall, large exhibition hall, scenic plank road, bar KTV, etc.





Wear-resistant non-slip

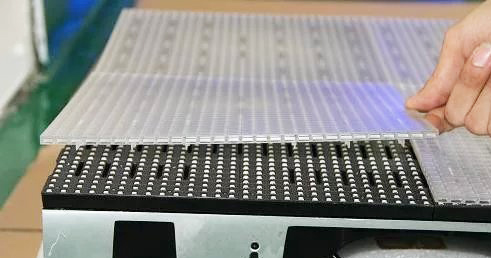

PC mask on the surface of the screen, wear-resistant, the screen is not easy to scratch

Mask colors are available, transparent and brown




High bearing capacity



Professional structural design, sheet metal material, bearing capacity up to 2000 kg / m2

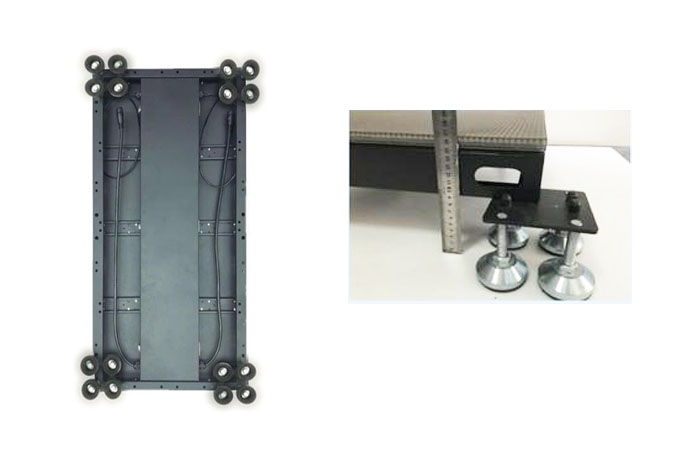

Easy to install


In the absence of tools, direct foot installation on site

Save time and effort

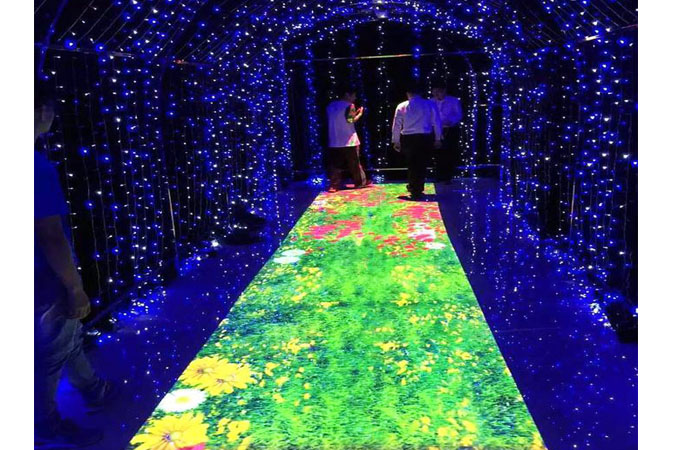

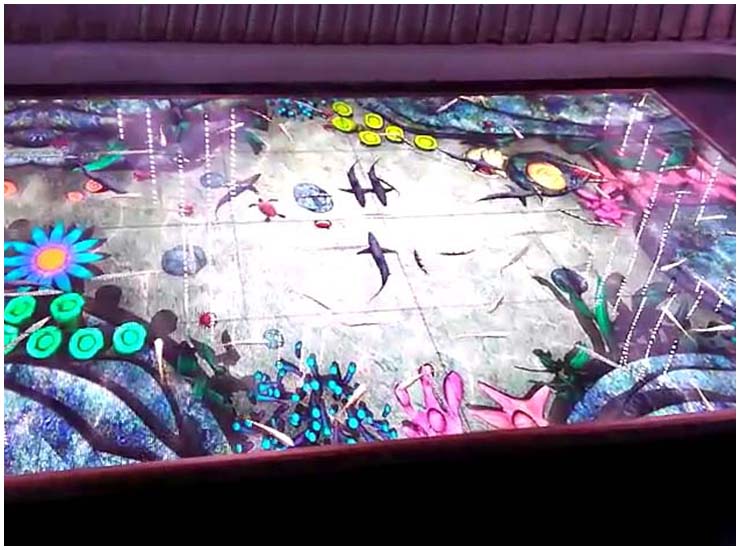

Human screen interaction


The interactive function can be upgraded. Configure a variety of interactive scenes and games, with the help of inductive sensors,


Realize human-screen interaction, a novel and interesting experience, make the display more vital, and punch cards on site.






Product VersionBotsX-2.84BotsX-3.91BotsX-4.81
Pixel Pitch(mm)2.84*2.84mm3.91*3.91mm4.81*4.81mm
LED Type2020/19212020/19212020/1921
Pixel Density(pixels/㎡)1239046553643264
Module Size(WxH)(mm)500*250mm500*250mm500*250mm
Tile Size(WxHxD)(mm)500*500*100mm500*500*100mm500*500*100mm
Tile MaterialAluminum profile & PCAluminum profile & PCAluminum profile & PC
Weight/Tile(箱)4.5kg4.5kg4.5kg
 Interaction ModeInfrared / touch / RadarInfrared / touch / RadarInfrared / touch / Radar
Brightness(cd/㎡)L:1200/H:5000L:1200/H:5000L:1200/H:5000
Brightness Level256256256级
Refresh Rate1920 Hz/3840 Hz1920 Hz/3840 Hz1920 Hz/3840 Hz
Color Processing16Bit16Bit16Bit
Colors281 trillion281 trillion281 trillion
Driving

Constant current drive

Constant current drive

Constant current drive
ICMBI5124GPMBI5124GPMBI5124GP
Scan1/221/161/13
Max. Power Consumption400W/㎡ / 800W/㎡400W/㎡ / 800W/㎡400W/㎡ / 800W/㎡
Ave. Power Consumption120W/㎡ / 250W/㎡120W/㎡ / 250W/㎡120W/㎡ / 250W/㎡
InstallationFoot or rail installationFoot or rail installationFoot or rail installation
Serviceability

Front/rear maintenance

Front/rear maintenance

Front/rear maintenance

IP RatingIP65IP65IP65
Hor. viewing angle160°160°160°
Vert. viewing angle160°160°160°
Work VoltageDC 5VDC 5VDC 5V
Operational Temp-10~40 ºC-10~40 ºC-10~40 ºC
Operational Humidity10%-90%10%-90%10%-90%
Input VoltageAC 100V~240VAC 100V~240VAC 100V~240V
Product Life100000 hours100000 hours100000 hours
