LED mesh screen DrcoY Series







DrcoY Flexible LED Mesh Screen


DrcoY flexible mesh screen is an innovative product of brightening video display level, which can not only meet the needs of brightening decoration, but also can be used for video display. It is a "large pitch" product with a dot pitch of 35mm~200mm. It has unparalleled advantages in the field of large-area display and creative display above 300m².


DrcoY has the characteristics of high permeability, flexibility, light weight, quick installation and maintenance. Products are widely used in building curtain walls, building exterior walls, building facades, shopping malls, wedding decorations, festivals and other fields.

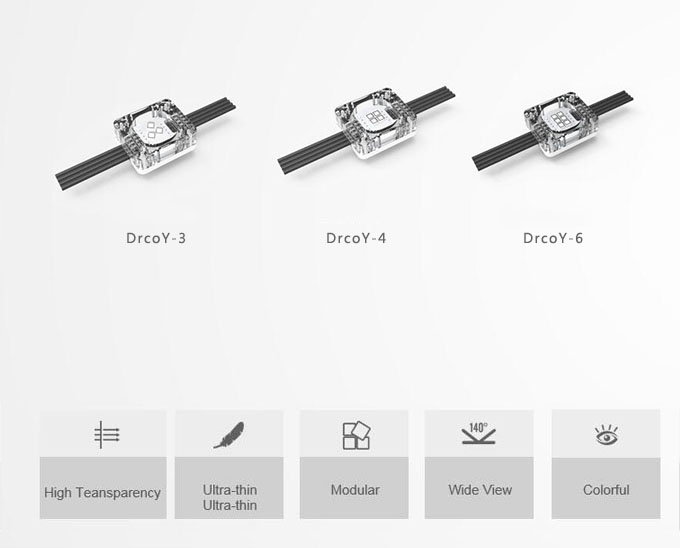

Model number: DrcoY-3 (1 lamp)/ DrcoY-4 (4 lamps)/ DrcoY-6 (6 lamps)

Pitch: 35mm / 40mm / 50mm / 80mm / 100mm / 150mm / 200mm

Installation method: hoisting / fixed installation



Product VersionDrcoY-3DrcoY-4DrcoY-6
Pixel Pitch(mm)35/40/50/80/100/150/200mm35/40/50/80/100/150/200mm35/40/50/80/100/150/200mm
 Module Pixel 8*128dot8*128dot8*128dot
 Module Size(WxHxD)280*4375*24mm@35mm280*4375*24mm@35mm280*4375*24mm@35mm
 ControlBox Size(WxHxD)300*220*50mm300*220*50mm300*220*50mm
 ControlBox MaterialAL/IRONAL/IRONAL/IRON
 Weight Unit16g16g16g
 Power Unit(dot)0.75W1W1.5W
 Transparency42%@35mm42%@35mm42%@35mm
Brightness Unit(dot)7.5CD10CD15CD
 Brightness(cd/㎡)4000@35mm6000@35mm10000@35mm
 Brightness Level256级256级256级
 Refresh Rate1920 Hz1920 Hz1920 Hz
 Color Processing14Bit14Bit14Bit
 Colors68.7 billion68.7 billion68.7 billion
 Transport ProtocolBPR/DMXBPR/DMXBPR/DMX
 DrivingConstant current driveConstant current driveConstant current drive
 Scan1/11/11/1
 Max. Power Consumption800W/㎡800W/㎡800W/㎡
 Ave. Power Consumption250W/㎡250W/㎡250W/㎡
 InstallationFixed installationFixed installationFixed installation
 ServiceabilityFront/rear maintenanceFront/rear maintenanceFront/rear maintenance
 IP RatingIP68IP68IP68
 Hor. viewing angle160°160°160°
 Vert. viewing angle160°160°160°
 Work VoltageDC 7.5VDC 15VDC 24V
 Operational Temp-10~40 ºC-10~40 ºC-10~40 ºC
 Operational Humidity10%-90%10%-90%10%-90%
 Input VoltageAC 100V~240VAC 100V~240VAC 100V~240V
 Product Life100000 hours100000 hours100000 hours
