In the field of commercial advertising, digital signage has always been dominated by the use of automobile and pedestrian traffic to achieve advertising effects. According to the survey, signage advertising promotes a 50% increase in sales, while LED advertising display promotes an increase in sales from 20% to 150%, especially the rise of new media media such as LED photoelectric glass, which has brought a wider market and application.

LED photoelectric glass is also called LED glass transparent screen. It is a breakthrough display technology and a new type of building material. Transparent, fashionable, technological and dynamic, transparent glass has rich image display functions. Its new product form and high product adaptability provide advanced solutions for urban landscape design and lighting design!

Table of contents:

1. Principle of LED glass transparent screen

2. LED glass transparent screen technology

3. LED glass transparent screen price

4. Application fields of LED glass transparent screen

1. Principle of LED glass transparent screen

Using tempered glass as the base material, embedded LED chips, laser etching circuits, and using a number of breakthrough technologies, the P20 model has a light transmittance of more than 90%, and has a very superior transparent visual experience. According to the shape of the architectural glass, we can design and match the style of the LED glass screen to help businesses promote advertisements. While keeping the glass transparent, it can also be used as structural glass, allowing both lighting and advertising needs.

Lianman LED photoelectric glass adopts unique module splicing and lamination technology to realize large-area combination of photoelectric glass, adopts single-point maintenance method to solve the after-sales problem of photoelectric glass, and effectively promotes photoelectric glass in municipal lighting and advertising display. Applications.

2. LED glass transparent screen technology

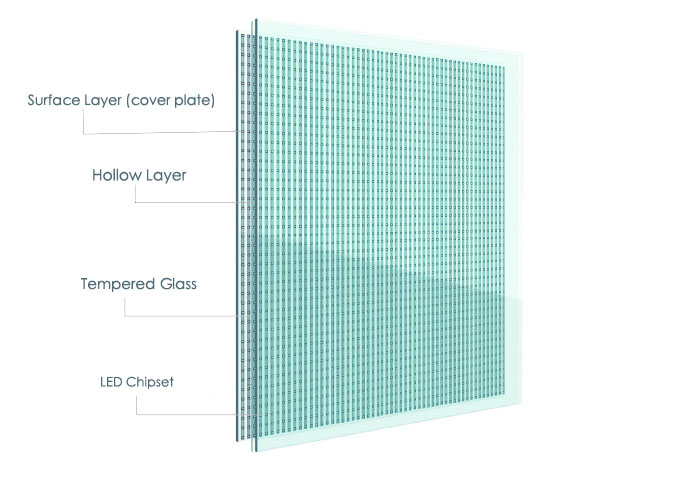

The LED light-emitting glass structure is a sandwich structure. An array of LED point light sources is embedded between the substrate glass and the upper cover glass. The LED point light sources are energized through the conductive lines on the substrate glass. Or without adding a layer of transparent EVA film (or PVB film), to achieve a variety of combined display or lighting methods.

The hierarchical structures of LED luminescent glass are: glass plate, adhesive layer, LED layer, and conductive coated glass plate engraved with LED circuit. The production process steps are as follows:

01. Cleaning and drying of conductive coated glass plate;

02. Scribe the pre-designed LED circuit on the conductive coated glass plate;

03. Bond the LED light source on the conductive coated glass plate;

04. Bond the power output leads;

05. Drying, the drying temperature of the conductive coated glass plate for bonding the LED and the output and input leads of the power supply is 30~150 ℃, which should not be higher than the temperature that the LED can withstand;

06. Lay the intermediate adhesive layer, the total thickness of the intermediate adhesive layer is at least 0.5mm more than the thickness of the LED;

07. Combination. Put another cleaned and dried glass plate with an intermediate layer of about 5mm on the conductive coated glass plate, and then fix the glass composite with high temperature resistant tape;

08. Vacuum preload. Move the sealed composite into a high-temperature oven, cool the air for more than 30 minutes, then slowly increase the temperature in the oven, keep the temperature at 40~60°C for about 30 minutes, and raise the oven temperature to 120~ 140℃, keep warm for 30~60 minutes, then cool naturally;

09. High temperature and high pressure treatment in autoclave. The temperature is 140±10℃, and the air pressure is 10~12±1bar constant temperature and pressure for at least 45 minutes;

10. Inspection and packaging.

3. LED glass transparent screen price

The price of LED photoelectric glass is mainly based on the model, that is, its price is determined according to the distance between the lamp beads. The smaller the distance between the lamp beads, the clearer the display and the more expensive the general price. The three commonly used models of P10, P16, and P20, the price of LED glass transparent screen is about 6000~15000 yuan / square meter, and it also depends on the brand of lamp beads, whether it is customized, and brightness requirements. Of course, the raw materials and processes produced by each factory are different, and the cost is different. The brand of lamp beads used is different, and the price difference is also very large. It is recommended to use a good brand of lamp beads, otherwise the screen will be easily damaged and maintenance will be very difficult. trouble.

LED glass transparent screen projects are generally medium and large-scale engineering projects. If you choose a regular LED glass screen manufacturer like Lianman Optoelectronics, welcome to consult.

4. Application fields of LED glass transparent screen

The LED glass transparent screen can present bright and bright image effects, making the image of the product more eye-catching, and the super color creates an excellent visual experience for users. As transparent display technology is recognized by more and more people, screens are widely used in aerospace, commercial buildings, shopping malls, as well as glass windows and merchandise display cabinets in luxury and jewelry chain stores.

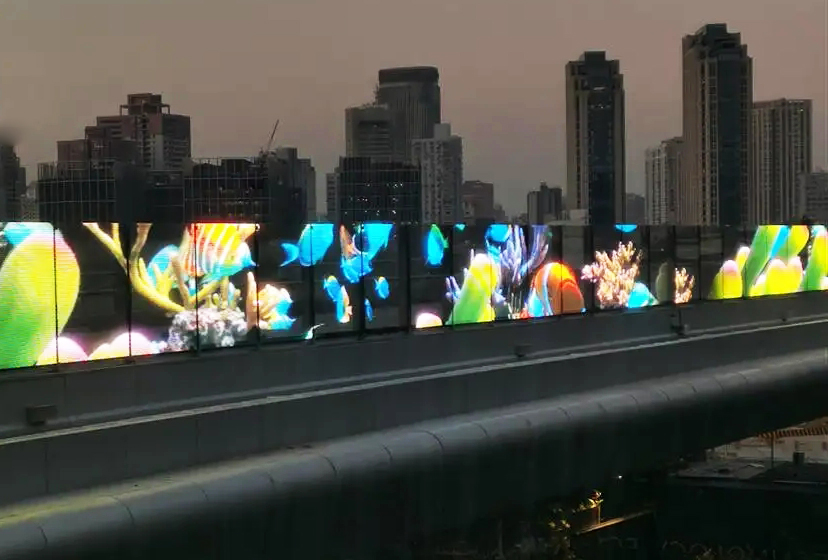

1) Glass curtain wall

The glass curtain wall of the city building has both light-transmitting perspective functions and video display functions, which will be the ultimate curtain wall form for modern urban development. Photoelectric glass not only makes the building more colorful, but also retains the function of glass transparency.

2) Retail stores

The window LED glass transparent screen has become a drainage artifact for major retail stores with its high value and highly technological appearance.

3) Outdoor Media

Can meet the dual requirements of advertising display and building safety, high-speed rail, airports, subways, bus stations and other public transportation fields will become high-value outdoor media positions for photoelectric glass.

4) Landscape lighting

It has the characteristics of transparency, waterproof and rich display, and is widely used in theme parks, characteristic towns, lighting design and other fields.

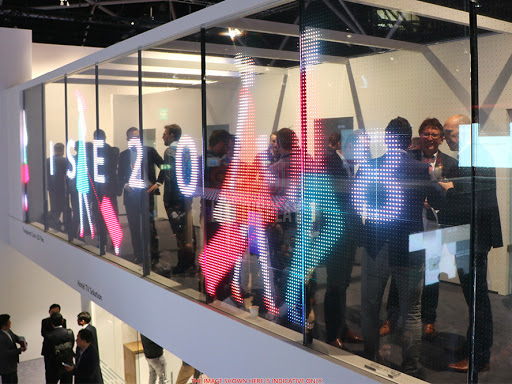

5) Exhibition hall exhibition

It is widely used in various industry exhibitions, science and technology museums, and various commercial exhibition halls around the world.

The functional requirements of the building, the people who use the building and the design ideas are perfectly unified, which is the future that the architects explore in the design. The LED glass transparent screen will take the attitude of leading the market trend. While expanding the architectural design space, it will bring a new way of life with differentiated and technological architectural media, so that the display can be integrated into life, and technology can serve life.
